Connecting SitecoreAI with Microsoft Dataverse: Authentication & Access Configuration

In the first part of our SitecoreAI and Microsoft Dataverse integration series , we explored the foundational concepts and architecture. Now, let’s dive into the practical aspects of establishing a secure connection between your SitecoreAI (XM Cloud) application and Microsoft Dataverse .

Authentication serves as the foundation for every integration. When linking SitecoreAI to Dataverse, it’s essential to configure your .NET application to securely call Dataverse APIs while upholding enterprise security and compliance requirements. This guide provides a step-by-step overview of authentication options, necessary permissions, and suggested approaches for establishing reliable connections.

What You’ll Learn:

• Authentication options for Dataverse (Service Principal vs. User credentials)
• Setting up Azure AD App Registration
• Configuring service principal permissions in Dataverse
• Building secure connection strings
• Implementing connection code in .NET
• Best practices for credential management

Microsoft Dataverse supports multiple authentication methods, but for server-to-server integration with SitecoreAI, Microsoft Entra ID (formerly Azure AD) Service Principal authentication is the recommended approach.

For SitecoreAI integration, we recommend:

• Development/Testing: Service Principal with Client Secret
• Production: Service Principal with Certificate

An App Registration in Azure AD serves as the identity for your SitecoreAI application when connecting to Dataverse.

1. Go to Azure Portal

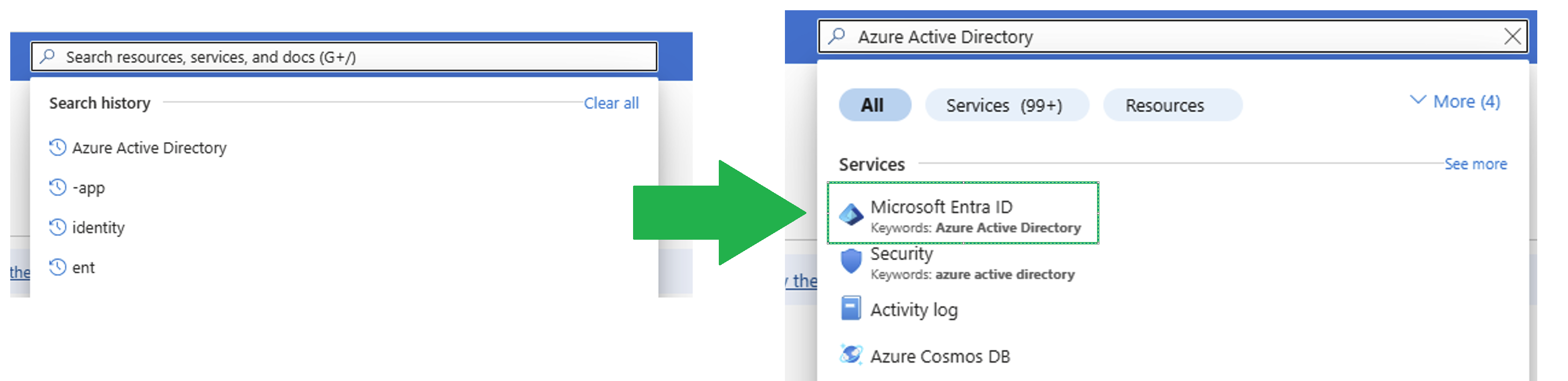

2. Search for Azure Active Directory

3. Select App registrations ➡ New registration

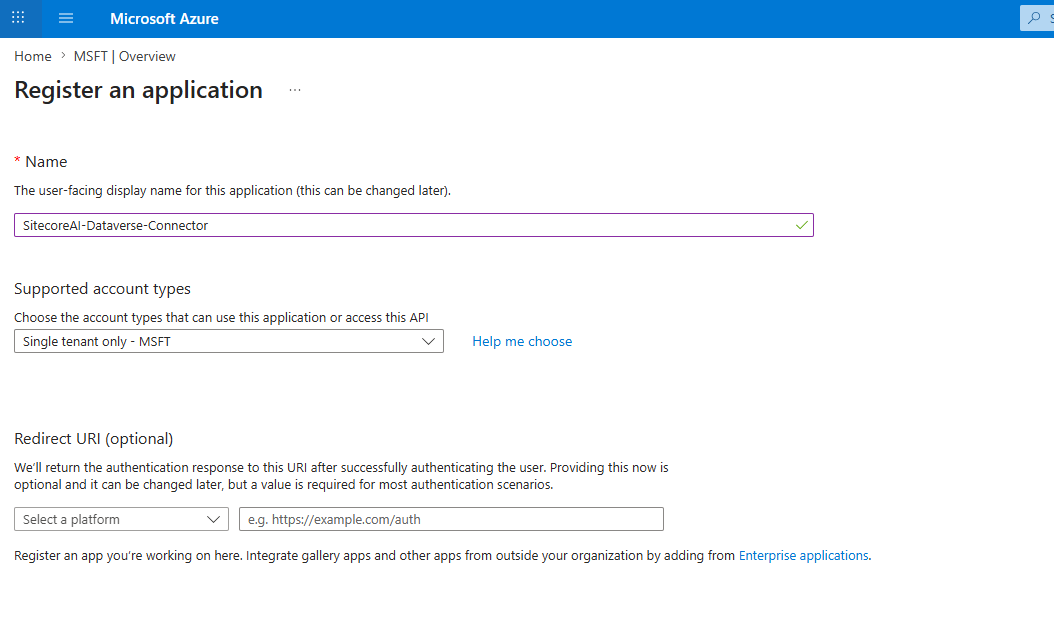

Configuration:

Name: SitecoreAI-Dataverse-Connector
Supported account types: Accounts in this organizational directory only (Single tenant)
Redirect URI: Leave blank (server-to-server integration)

Click “Register”

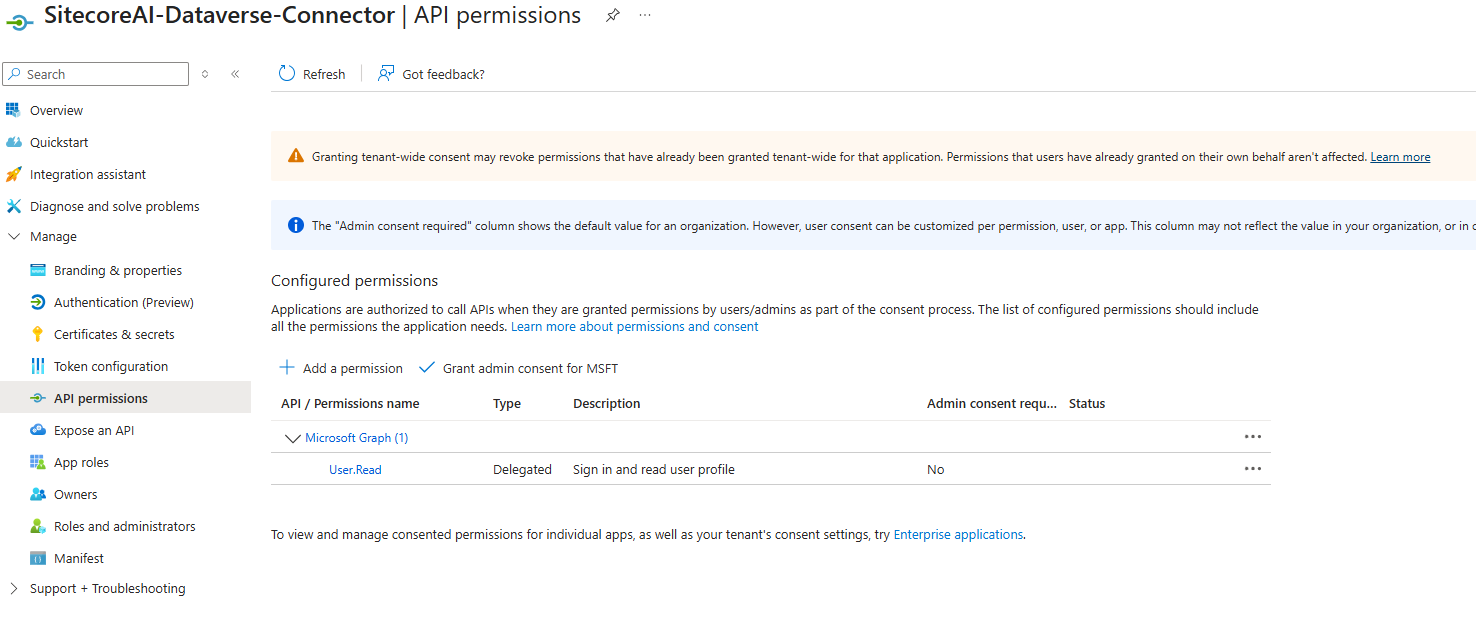

API Permission to read

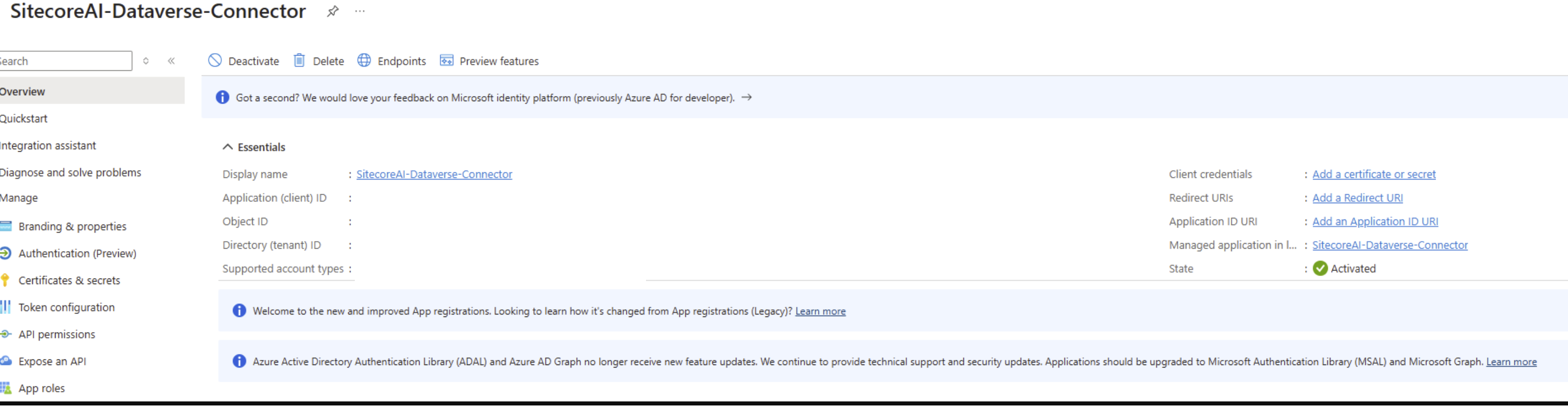

After registration, record these values (you’ll need them later):

• Application (client) ID

An App Registration in Azure AD serves as the identity for your SitecoreAI application when connecting to Dataverse.

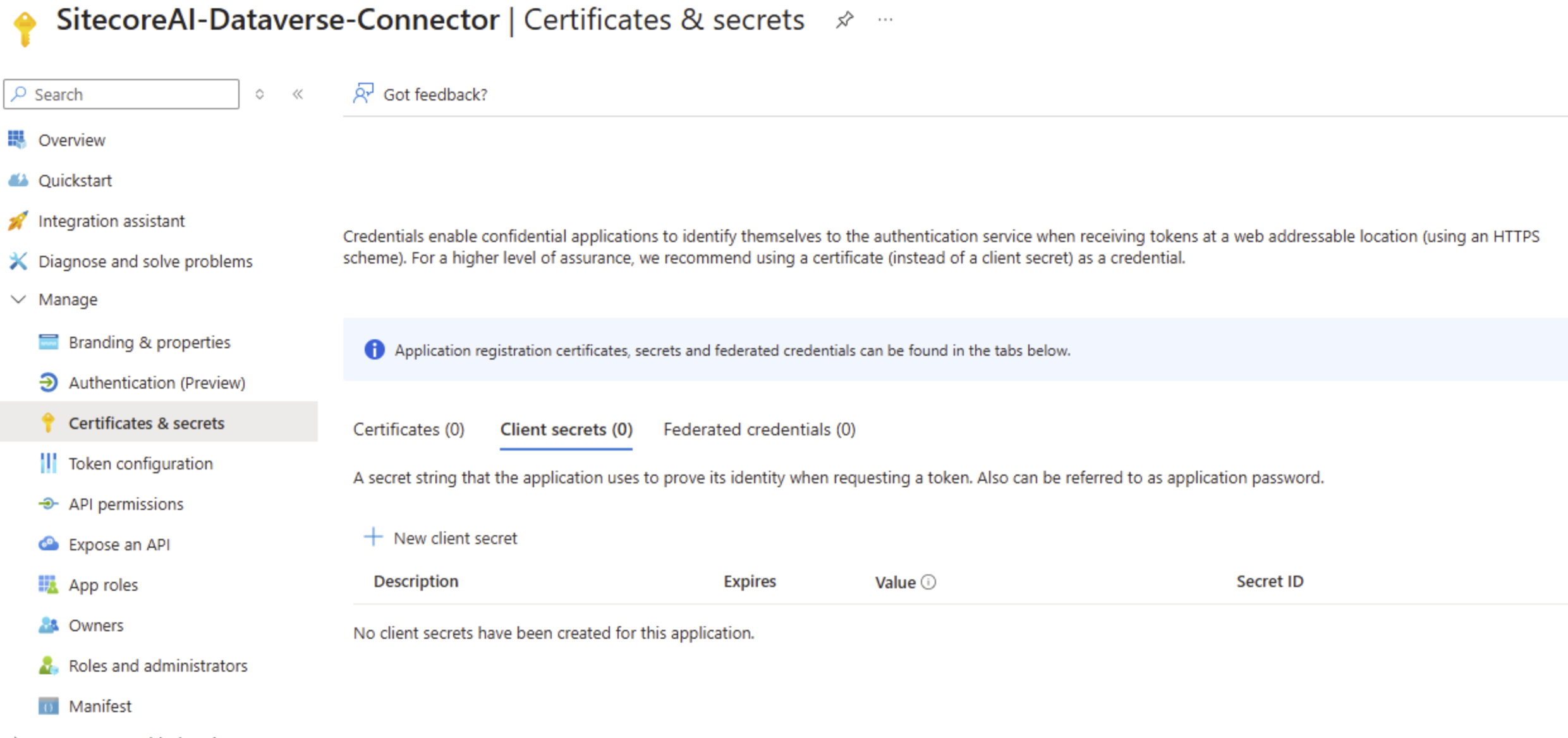

1. In your App Registration, go to Certificates & secrets

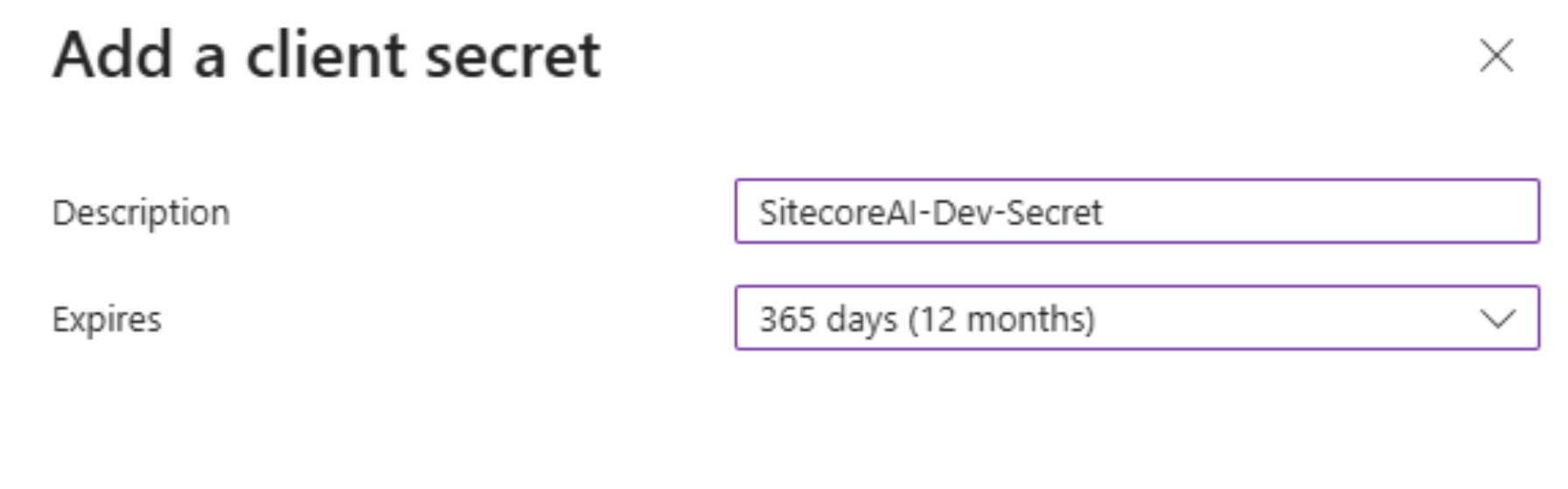

2. Click New client secret

Description: SitecoreAI-Dev-Secret
Expires: 12 months (or custom)
Redirect URI: Leave blank (server-to-server integration)

3. Click Add

1. Generate Self-Signed Certificate (for testing):

# PowerShell script to generate certificate
$cert = New-SelfSignedCertificate `
   -Subject "CN=SitecoreAI-Dataverse" `
   -CertStoreLocation "Cert:\CurrentUser\My" `
   -KeyExportPolicy Exportable `
   -KeySpec Signature `
   -KeyLength 2048 `
   -KeyAlgorithm RSA `
   -HashAlgorithm SHA256 `
   -NotAfter (Get-Date).AddYears(2)

# Export certificate (upload to Azure AD)
Export-Certificate -Cert $cert -FilePath "SitecoreAI-Dataverse.cer"

# Export private key (use in your application)
$password = ConvertTo-SecureString -String "YourStrongPassword" -Force -AsPlainText
Export-PfxCertificate -Cert $cert -FilePath "SitecoreAI-Dataverse.pfx" -Password $password

Upload to Azure AD:

1. Go to Certificates & secrets → Certificates tab

2. Click Upload certificate

3. Select SitecoreAI-Dataverse.cer

4. Click Add

Now your App Registration exists, but it needs permission to access Dataverse.

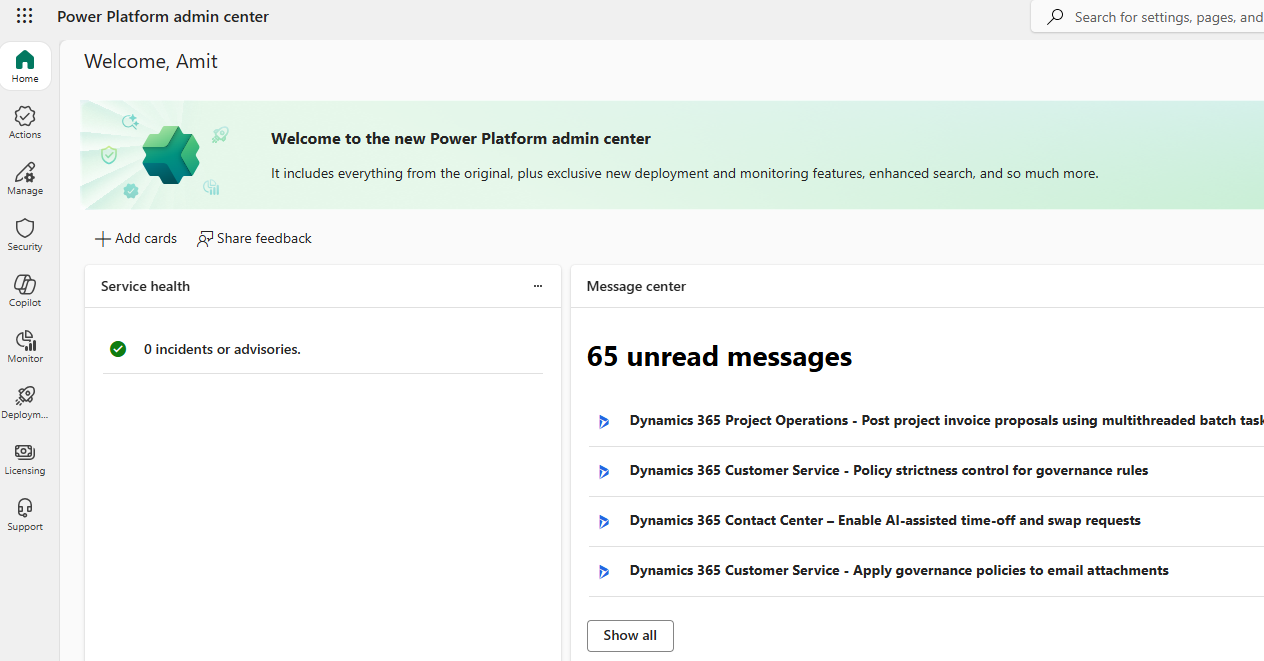

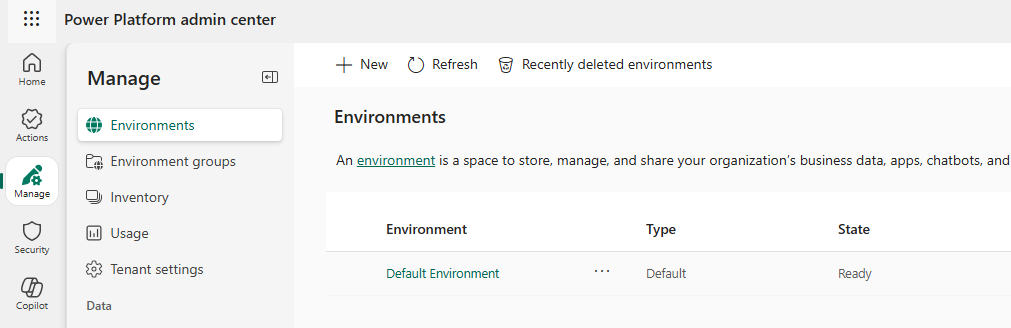

1. Go to Power Platform Admin Center

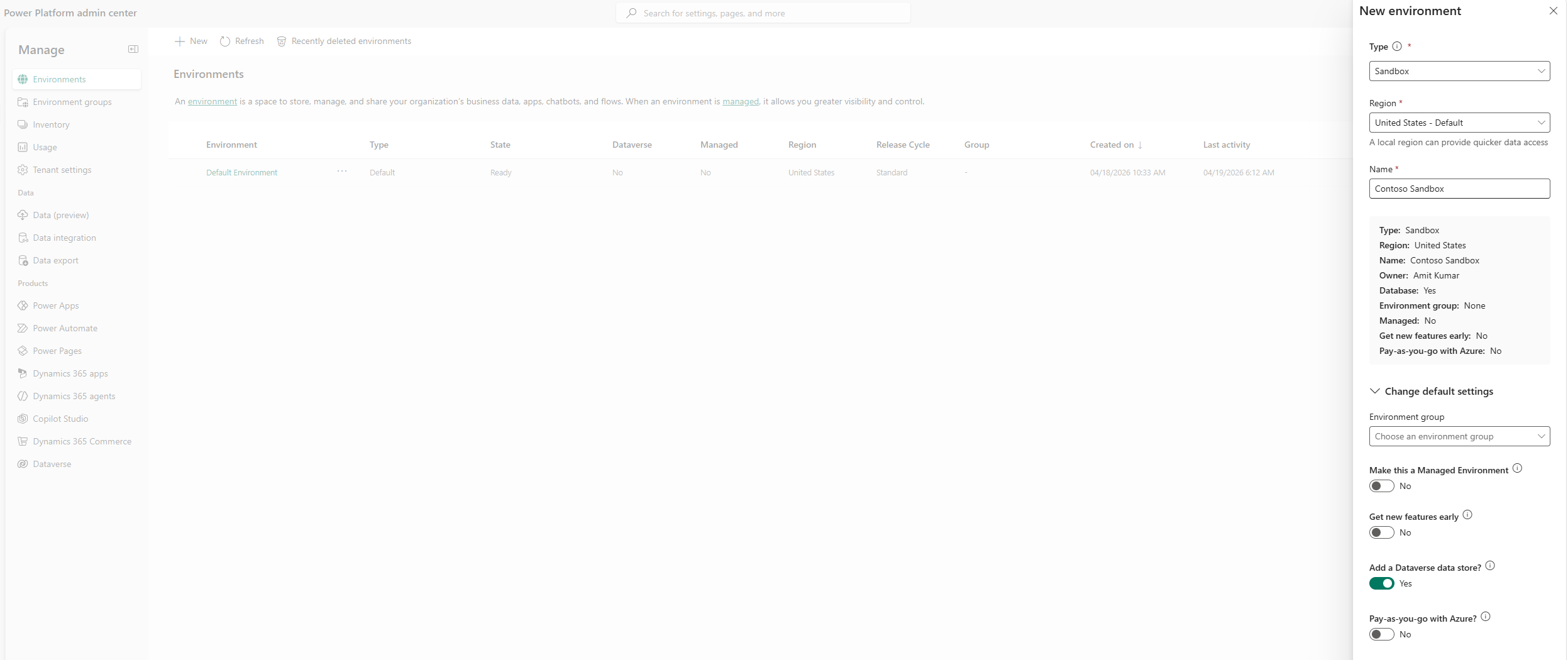

2. To create new environment, follow Create and manage an environment

1. Select your Dataverse environment from Power Platform Admin Center ➡ Manage ➡ Environments

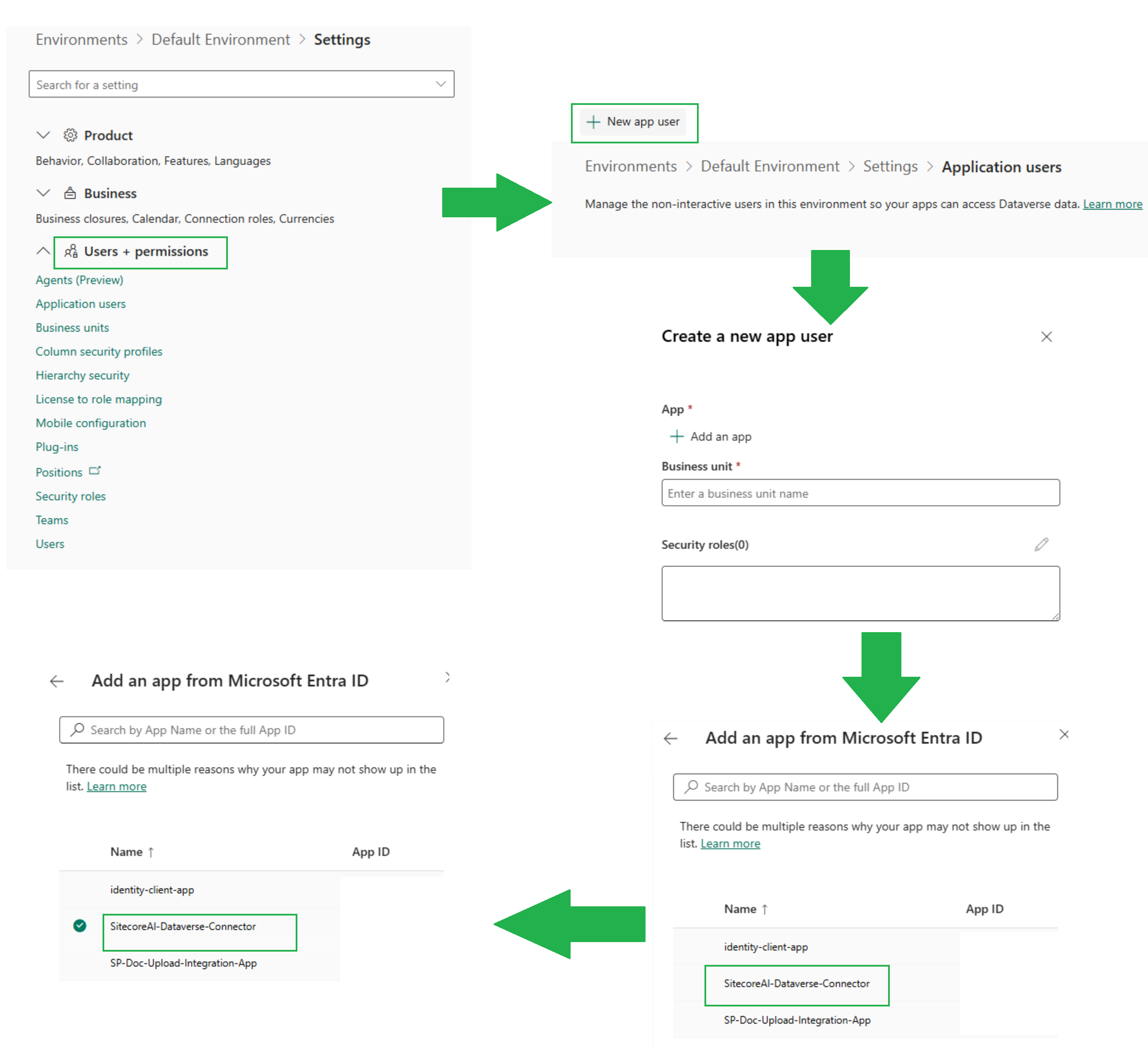

2. Go to Settings ➡ Users + permissions ➡ Application users ➡ Click New app user

Configuration:

App: Select your App Registration (SitecoreAI-Dataverse-Connector)
Business unit: Your organization's business unit
Security roles: System Administrator (or custom role with appropriate permissions)

⚠️ Security Best Practice:

Instead of System Administrator, create a custom security role with minimum required permissions:

Recommended Permissions for SitecoreAI Integration:

• Core Records: Create, Read, Update, Delete (as needed)

• Business Management: None

• Service Management: None

• Customization: Read (if reading metadata)

Access levels in Dataverse control what data your application can read/modify.

Access Level Hierarchy

For SitecoreAI Form Submissions (typical scenario):

• Create: Organization level (allow forms from any site)

• Read: Organization level (read any submission)

• Update: Business Unit level (only update your records)

• Delete: Business Unit level (controlled deletion)

With authentication configured, construct your connection string.

Connection String Components

AuthType=ClientSecret;
Url=https://yourorg.crm.dynamics.com;
ClientId=12345678-1234-1234-1234-123456789abc;
ClientSecret=abc123DEF456ghi789JKL012mno345PQR678stu901VWX234

Component Breakdown:

• AuthType: ClientSecret or Certificate

• Url: Your Dataverse environment URL (find in Power Platform Admin Center)

• ClientId: Application (client) ID from App Registration

• ClientSecret: Secret value (if using client secret)

• CertificateStoreName / CertificateThumbprint: (if using certificate)

Certificate-Based Connection String

AuthType=Certificate;
Url=https://yourorg.crm.dynamics.com;
ClientId=12345678-1234-1234-1234-123456789abc;
CertificateStoreName=My;
CertificateThumbprint=ABCDEF1234567890ABCDEF1234567890ABCDEF12

Find Certificate Thumbprint:

Get-ChildItem -Path Cert:\CurrentUser\My | Where-Object { $_.Subject -like "*SitecoreAI*" }

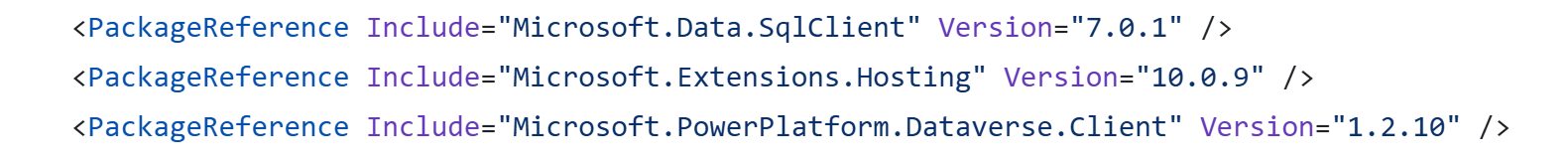

6.1 Install NuGet Package

dotnet add package Microsoft.Data.SqlClient
dotnet add package Microsoft.Extensions.Hosting
dotnet add package Microsoft.PowerPlatform.Dataverse.Client

6.2 Use appsettings.json for Configuration (Recommended for Production)

It is always recommended to use environment variables to store configuration details. This makes it easier to deploy the application to different environments, as the configuration can be updated through environment variables without modifying the application code.

{
  "Dataverse": {
    "DataverseEnvironment": "environmentid.crm.dynamics.com/",
    "ClientId": "client id",
    "ClientSecret": "client secret"
  },
  "Logging": {
    "LogLevel": {
      "Default": "Information"
    }
  }
}

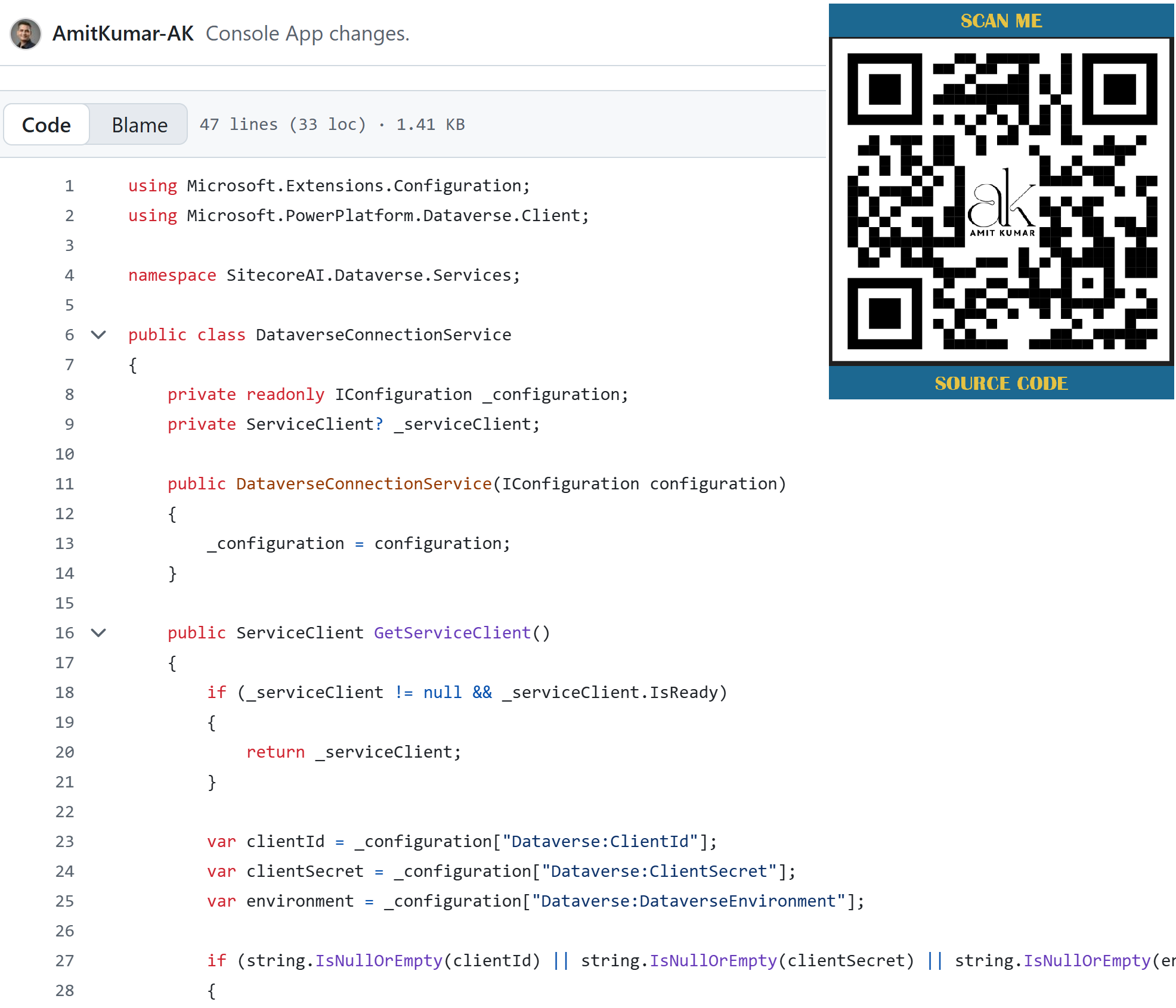

using Microsoft.Extensions.DependencyInjection;
using Microsoft.Extensions.Hosting;
using SitecoreAI.Dataverse.Services;

// Build host with dependency injection
var host = Host.CreateDefaultBuilder(args)
    .ConfigureServices((context, services) =>
    {
        services.AddSingleton<DataverseConnectionService>();
    })
    .Build();

Console.WriteLine("Dataverse Connection Validation");

// Get the service from DI container
var dataverseService = host.Services.GetRequiredService<DataverseConnectionService>();

try
{
    // Get the service client
    var serviceClient = dataverseService.GetServiceClient();
    Console.WriteLine("Connected to Dataverse successfully.");
}
catch (Exception ex)
{
    Console.WriteLine($"Dataverse call failed: {ex.Message}");
    if (ex.InnerException != null)
    {
        Console.WriteLine($"Inner Exception: {ex.InnerException.Message}");
    }
    Console.WriteLine($"\nStack Trace: {ex.StackTrace}");
}

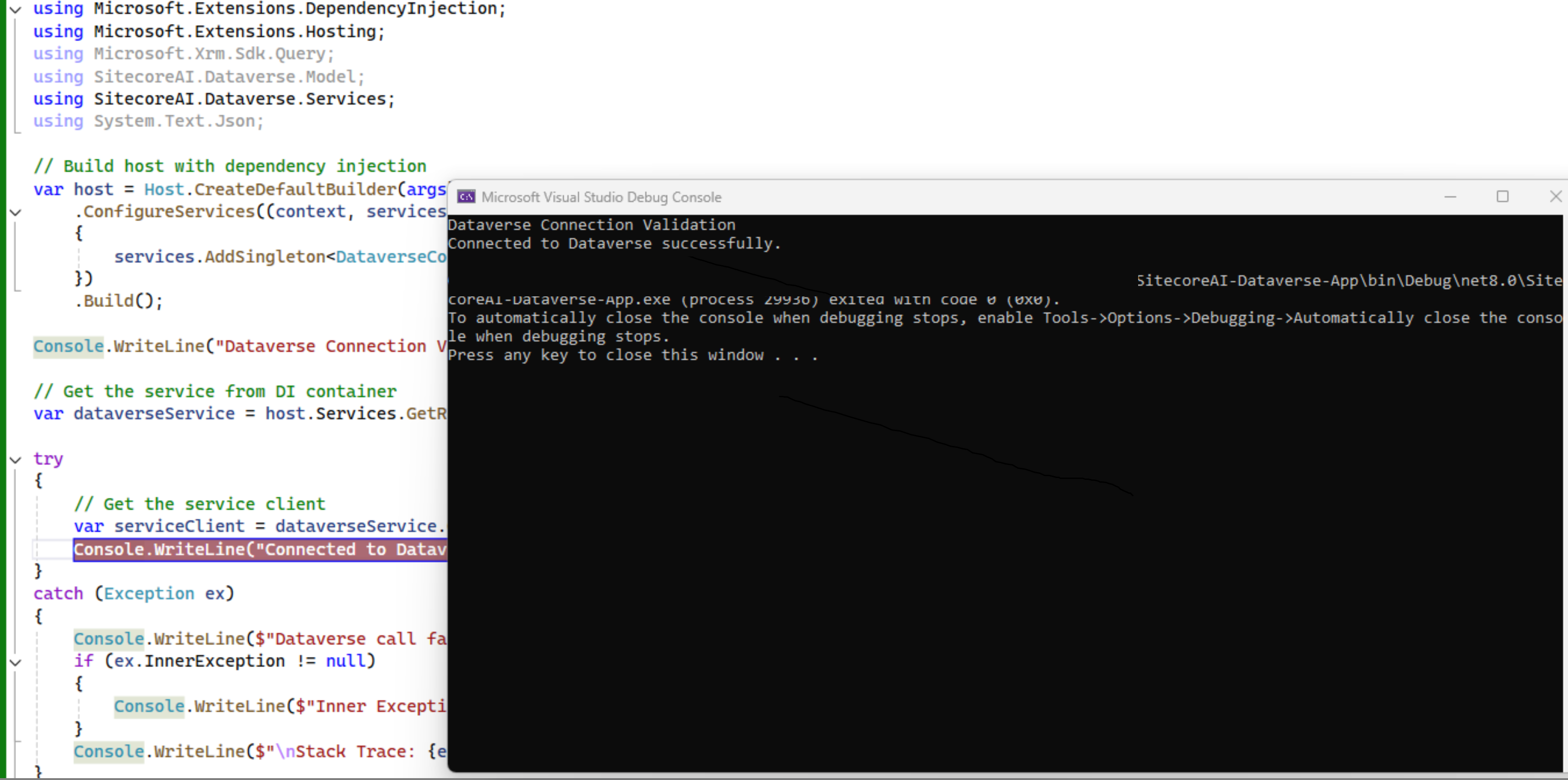

You can download the code from the SitecoreAI-Dataverse-Connector GitHub repository. After configuring all the required settings, run the project. If the connection to Microsoft Dataverse is established successfully, the success message Connected to Dataverse successfully. will be displayed in the console:

Explore More & Share Your Feedback

📱 Scan to access the complete SitecoreAI-Dataverse-Connector repository
💻 Azure Functions integration, .NET 8 code, authentication setup & CRUD examples

Share your feedback or contribute to support the Sitecore developer community!

AmitKumar-AK/sitecoreai-dataverse-connector

Azure Functions-based integration connecting SitecoreAI (XM Cloud) forms to Microsoft Dataverse. Includes certificate-based authentication, CRUD operations, and console app demos.

C#

0

0

Issue 1: “Entity doesn’t contain attribute”

Cause: Using the wrong entity and its attributes

Solution: Verify table name and its fields

System.ServiceModel.FaultException`1: ''crf21_Department' entity doesn't contain
 attribute with Name = 'crf21_ID' and NameMapping = 'Logical'
 (look up attribute by name is case-sensitive).orgIndex: 1514, id:
 123456-c66c-5678-987, logicalName: crf21_department'

Issue 2: “No valid connection string parameter was found”

Cause: Malformed connection string
Solution: Verify format, ensure no line breaks, check for typos

// ❌ Incorrect (line breaks causing issues)
var conn = "AuthType=ClientSecret;
Url=https://yourorg.crm.dynamics.com;
ClientId=...";

// ✅ Correct (single line or use verbatim string)
var conn = @"AuthType=ClientSecret;Url=https://yourorg.crm.dynamics.com;ClientId=...;ClientSecret=...";

Issue 3: “AADSTS7000215: Invalid client secret provided”

Cause: Incorrect client secret or expired
Solution: Regenerate secret in Azure AD, update configuration

Issue 4: “Principal user is missing prvReadAccount privilege”

Cause: Application user lacks necessary permissions
Solution: Update security role in Power Platform Admin Center

Issue 5: “Request failed with status code 401 Unauthorized”

Cause: Service principal not added as Application User in Dataverse
Solution: Follow Step 3.2 to create Application User

Now that you’ve established a secure connection with Dataverse, you’re ready to perform CRUD operations!

In Article 3, we’ll build Azure Functions to interact with Dataverse table:

• Implement Add (Create) operations

• Implement Update operations

• Implement Delete operations

• Handle transactions and error scenarios

Stay tuned! 👀
